GROB AIRCRAFT FRANCE-en





ICARUS

THE MOST VERSATILE MULTI ROLE PLATFORM

H3 ICARUS MULTI ROLE ISR PLATFORM

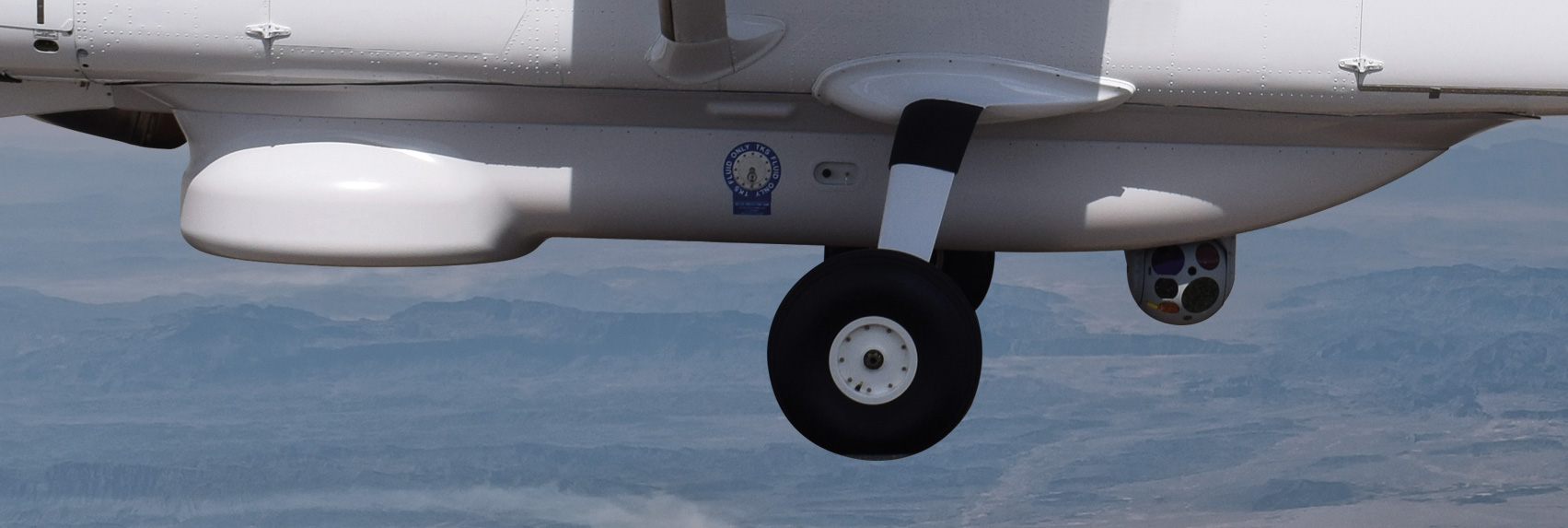

GAF ISR POD

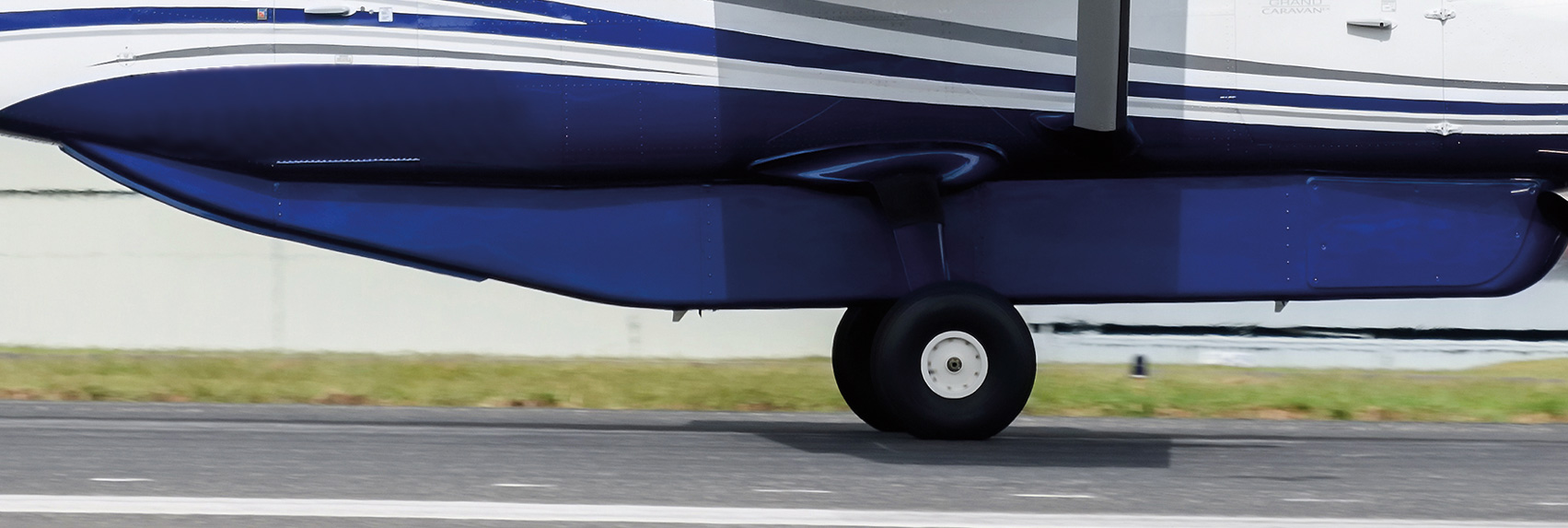

FACTORY CARGO POD

The H3 ISR POD is a drop in replacement for the factory cargo pod. Role change of the platform from transportation to ISR is done with a minimum downtime.
The cost efficient ISR UPGRADE is a modular and scalable solution that comprises EO/IR, RADAR, SIGINT and LOS/BLOS data link systems.
For TKS equipped platforms, ice protection capability is preserved.

LEADING PARTICULARS

Max. take-off weight 8,807 lb 3,995 kg
Max. landing weight 8,500 lb 3,856 kg
Standard empty weight 4,558 lb 2,067 kg
Max. fuel capacity 336 gal 1,270 Liter
Pratt&Whitney Canada PT6A-140 turboprop engine MP 867 SHP
Hartzell propeller, 3-blade, constant speed, diameter 106 in 2.63 m
Take-off distance over 50 ft (MTOW, no wind, no slope, 10°C, MSL) 2,095 ft 639 m
Landing distance over 50 ft (MLW, no wind, no slope, 10°C, MSL) 1,845 ft 562 m
Max. cruise speed (10,000 ft, -20°C, MTOW) 192 ktas
Rate of climb (S.L., 0°C, MTOW, flaps up) 1,290 ft/min
Time to climb from MS.L. to 24,000 ft (MTOW, ISA) 38 min.
Max. operating altitude 25,000 ft

Up to 4 ASOCs with dual displays HD
Quick install on seat tracks

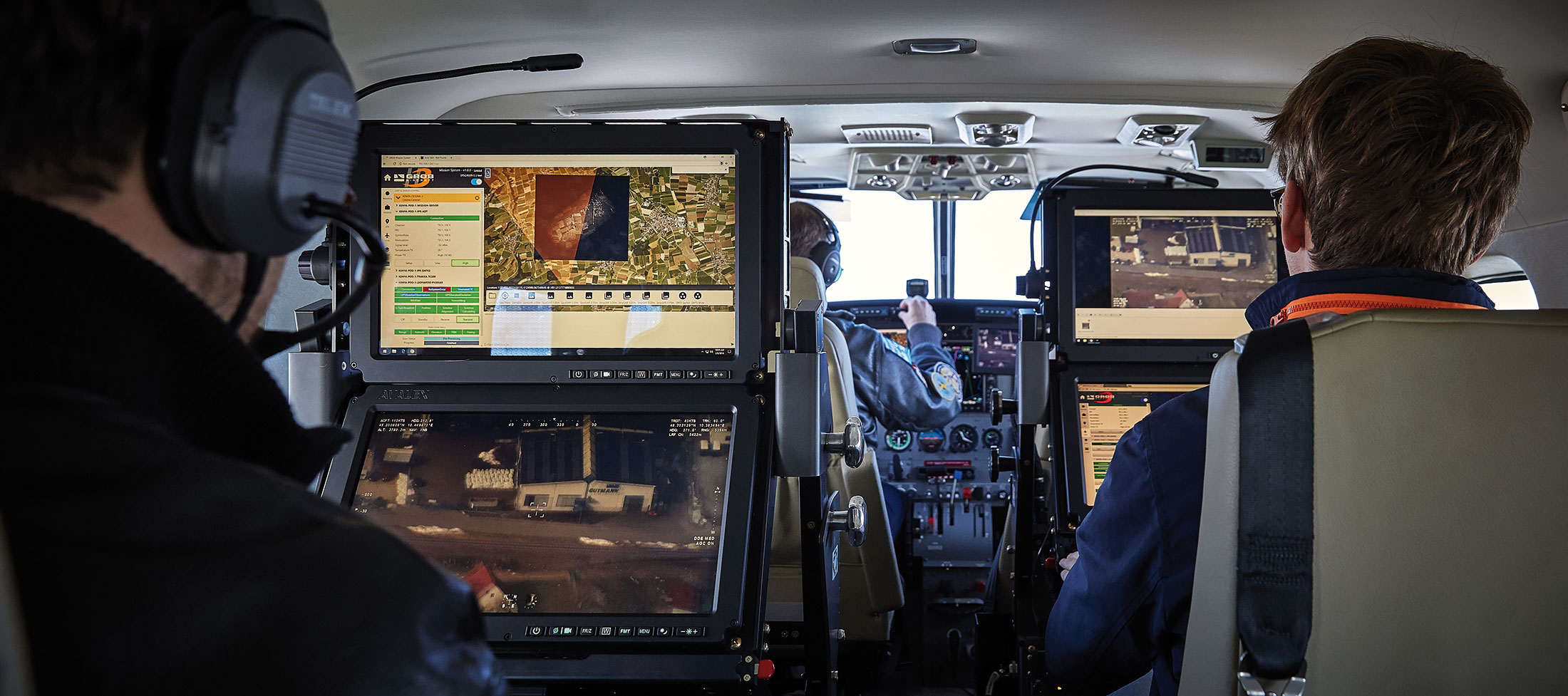

The GAF dual display ASOCS are allowing for rapid installation on the seat tracks in the cabin.

GAF STATE OF THE ART SENSOR SUITE

GAF Special Mission Department have a long working experience with a large variety of sensors and systems in different domains. Many systems have been installed and integrated into a comprehensive mission suite, allowing for sensor fusion and an intuitive working environment.

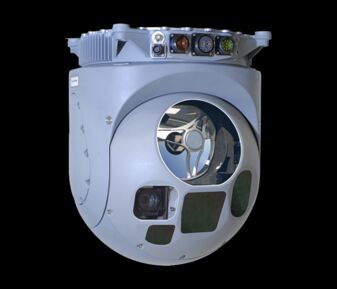

SAFRAN Euroflir 410

MULTISPECTRAL & ULTRA LONG-RANGE OBSERVATION, DAY/NIGHT, ALL WEATHER

Euroflir™ 410 operates in four spectral wavebands (TV/NIR/SWIR/MWIR), allowing it to function at standoff distance any time day or night, and quickly identify persons in danger or different kinds of threats. Thanks to its multispectral spotter, Euroflir™ 410 allows the operator to always be focused on a target while changing of spectral wavebands.



One of the major challenges faced by military and security forces today is the wide range of threats and missions they have to address: ISR, ISTAR, smuggling, trafficking, terrorism, search and rescue, illegal fishing, pollution, piracy, trafficking etc. They have to carry out these missions by day or night, quickly, and often in degraded visual environment.



AUTOMATIC VIDEO TRACKING
ENHANCED RESOLUTION
HOT SPOT DETECTION (HSD)
VIDEO MOVING TARGET IDENTIFICATION (VMTI)
BLENDING & FUSION

For detailed information please follow the link above:

www.safran-group.com

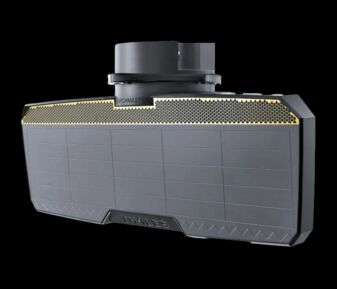

THALES SEARCHMASTER RADAR

MULTI-ROLE AIRBORNE SURVEILLANCE RADAR

Airborne radar intelligence is a fundamental component of modern ISR capabilities. These systems offer significant advantages over traditional sensors that rely on optical range alone. They can detect small targets, whatever the weather conditions, and can cover vast areas of land or sea.

Increased operational efficiency

Operating in X-band with the latest AESA (Active Electronically Scanned Antenna) technology, the SEARCHMASTER® radar offers significant operational advantages at a weight of less than 80 kg:

  • Immediate, precise assessment of the situation on land, in the air or at sea
  • Low cost of ownership, with simplified software upgrades
  • Maximum operational availability and intelligent maintenance
  • Ability to follow the evolution of assigned missions

For detailed information please follow the link above:

www.thalesgroup.com

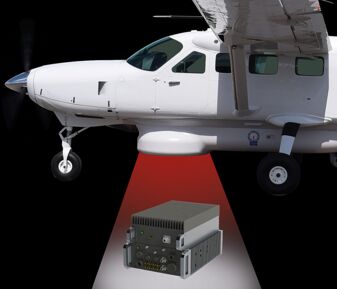

Mission Data Link Unit (MDU)

The Mission Data Link Unit (MDU) is designed for real-time, full-duplex digital data communications between ISR (Intelligence Surveillance and Reconnaissance) platforms and ground stations.
It incorporates an interface management board for on-board sensors.
Data link specifications

  • LOS transmission: up to 150 km with 2D antenna and ground station
  • Variable frequency ranges: UHF,L,S,C with PA or LFPA
  • Modulation: Coded Orthogonal Frequency Division Multiplexing ( COFDM )
  • Mode: 2K in a bandwidth from 1 to 8 Mhz
  • Error correction: Reed-Solomon, Viterbi inter-leaving, outer-leaving and convolution encoding
  • Flow: 5 to 30 Mbps downlink, 1 to 5 Mbps uplink
  • Encoding: AES 128 256 Bits
  • Analog video input : PAL, NTSC
  • Digital video input: SD-SDI , HD-SDI
  • Video compression: H.264 (ISO/IEC14496-10 AVC MPEG-4 part 10)
  • Metadata: KLV on serial / ip, KLV on SDI
  • GPS antenna input: for ground station tracking
  • 4G LTE link (5 G Ready)
  • Range: Depends on existing infrastructures
  • Variable frequency bands: Depend on existing infrastructures
  • Flight altitude: Depends on existing infrastructures typically up to 2,500 ft.
see GROUND BASED SYSTEM

ISR POD SYSTEMS

PLATFORM AGNOSTIC DROP IN SOLUTION. OEM Install, or retro-fit.
For C208 GRAND CARAVAN, King Air B200/300 and other platforms.

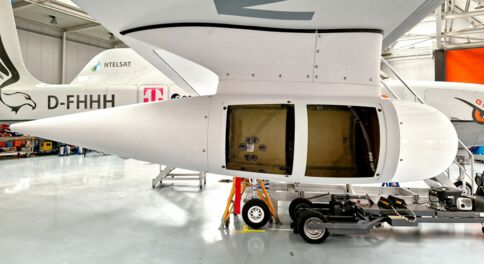

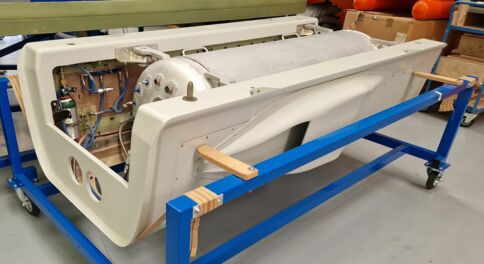

The ISR BELLY POD is a modular system, comprising a fuselage interface, avionic bays and a large customizable fairing. For the ease of maintenance, the fairing is divided into two elements.

The fuselage interface integrates with different aircraft. It adapts to Cessna 208,  KING Air 200/300 and other platforms. It can be STC’d for dedicated customer platforms.

The ISR POD boast a modular sensors- and systems bay, accommodating a large variety of sensors. The fairing is RF transparent and can include a large radom for rotating radars, or huge antenna arrays.  At the rear, a redundant camera lift system,  including shutter doors, is integrated.

CESSNA 208

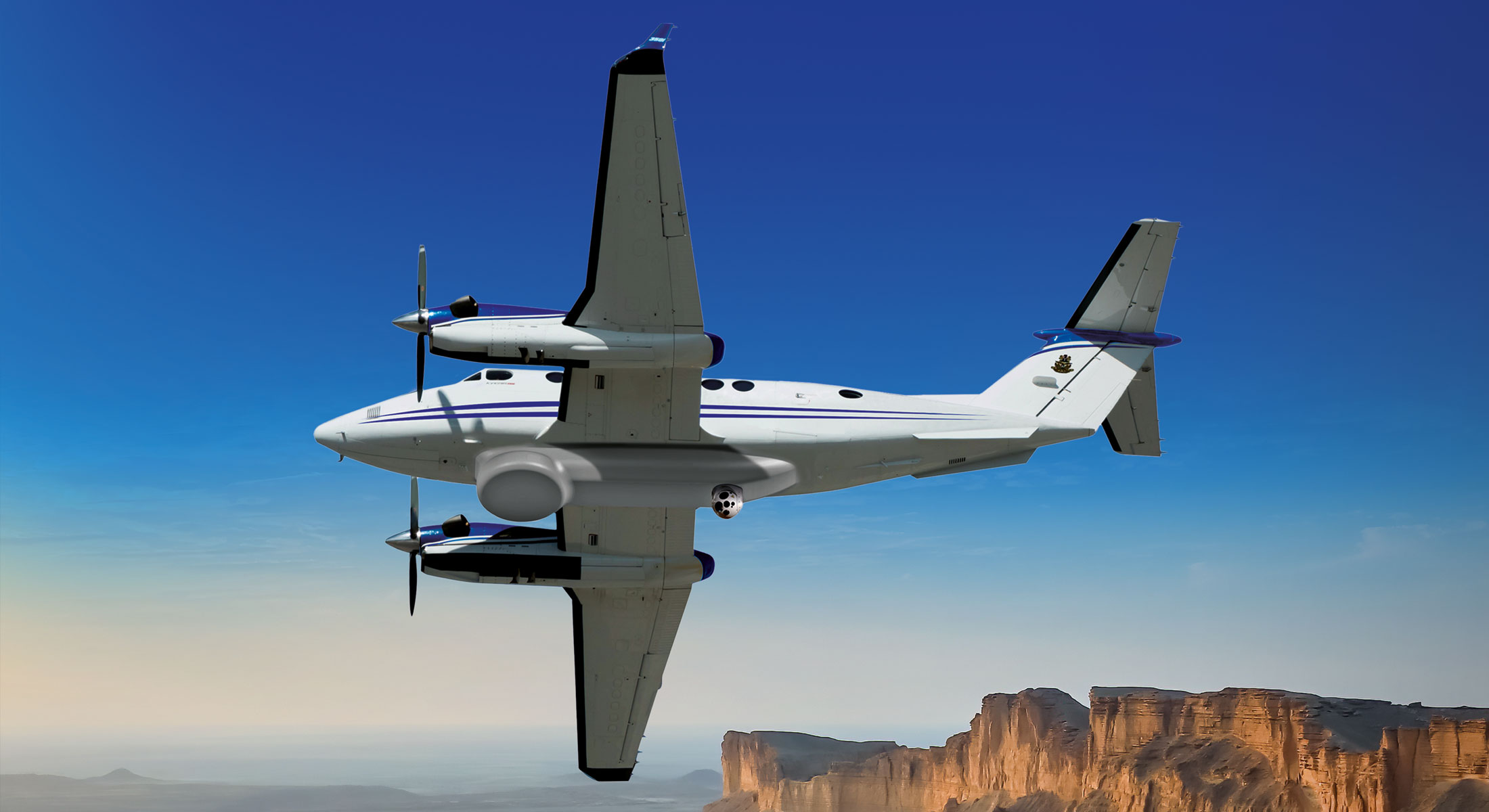

KING Air 200/300

G 120TP UNDERWING ISR POD

COMPONENTS

BUILDING BLOCKS OF SPECIAL MISSION AIRCRAFT

GAF is providing platform agnostic aircraft modifications and systems for multi-role special mission platforms in the civil and military sector. GAME also offers solutions for ground control stations and software applications. Operating in an EASA approved environment is allowing for STC’d custom solutions.

The ISR BELLY POD is a modular system, comprising a fuselage interface, avionic bays and a large customizable fairing.
For the ease of maintenance, the fairing is divided into two elements.
Leonardo Seaspray 7X00, Hensoldt PrecISR, Wescam MX-series, Hensoldt Argos and many other sensors have been integrated.

REDUNDANT CAMERA LIFT

CUSTOM SOLUTIONS

UNDERWING HARDPOINTS

CAMERA MOUNTS & CONSOLES
